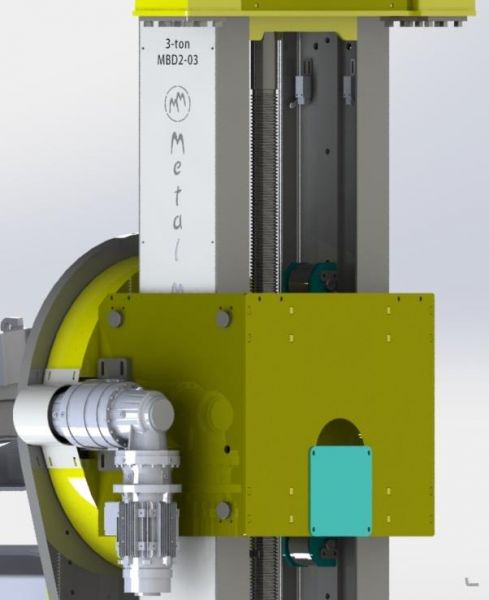

MBD2-03 3 TONS CAPACITY DOUBLE-SIDED BOGIE LIFTING AND ROTATING EQUIPMENT
MBD2-03 Bogie lifting and rotating equipment is a specially designed and manufactured product to be used for welding and maintenance of different types of bogies up to 3 tons of capacity or any product.
MBD2-03 has main control board and remote control.
The bogie lifting and rotating equipment has 2 different movement capabilities independent of each other.
a) Equipment table up-down movement;
b) Equipment table rotational movement;

MBD2-03 Bogie Lifting and Rotating Equipment can be fixed on two feet, fixed on one foot, movable on a foot rail or mobile portable type with two feet on wheels, according to the customer's request. Bench legs that are fixed to the floor are fixed to the floor to be installed through the holes in the base sheet.

Safety measures in MBD2-03;

Height Limit Conditions: There are lower (minimum) and upper (maximum) limit switches on each bogie lifting and turning bench, and each of these switches is positioned as two. In case of not detecting any of the limit switches, the backup switch is activated.

Obstacle at the Bottom: If there is any object under the body or arm during the lowering process of the bench, these switches activate and the movement stops automatically. In these cases, the operator cannot make the jacks move down even if he wants to, but he can make the jacks move upwards in order to get rid of the load.

Failure Status of Carrier Nut: It is activated in case of a possible malfunction of the carrier nut on the machine and in this case, the operator cannot continue the lifting process. The malfunction can be seen on the PLC screen. In case of damage to the main nut, the safety nut under the carrier nut takes the load and allows the suspended load to be lowered safely.
There is 1 safety nut on each jack stand apart from the main carrier nut.
